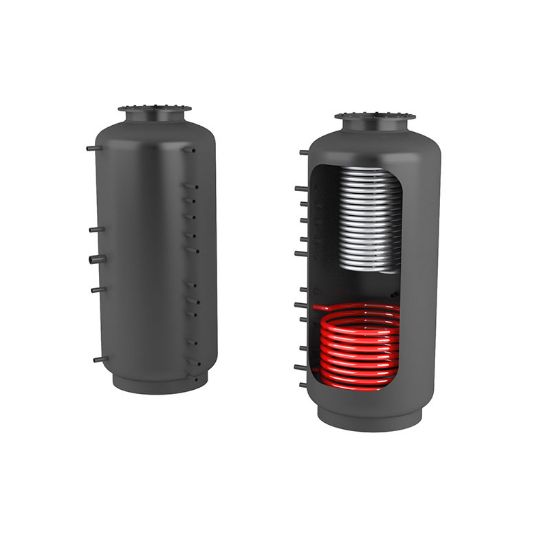

Accumulation tank TUV- MT1 500l d600 +DN32

The MT1 storage tank is a suitable solution for "storing" excess heat. The storage tank ensures an even and more efficient use of the heat produced, thus reducing heating costs. This vessel allows connection to multiple heat sources, such as a heat pump. This vessel is specially designed for the possibility of inserting an additional boiler, spiral and solar panels for DHW heating.

• Volume: 500 l
• Height: 1835 mm
• Operating temperature / pressure: 0-95 ° C / 3 bar
• Bottom height: 250 mm
• Container diameter: 600 mm
• Handling height: 1900 mm
• Weight with filling: 175 kg
• Casing material: S235 JRG2
• Arched bottom material: S235 JRG2
• Finish: Synthetic paint
• Connecting thread: DIN ISO 228-1

Optional accessories:

• Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
• Insulation width: 100 mm
• Diameter with insulation: 850 mm

FÉNIX HMV-DN32 is a system for heating domestic hot water. The austenitic chrome-nickel stainless steel tube ensures perfect temperature transfer and at the same time guarantees long-term corrosion resistance.

• Size: DN32
• Heat exchange surface: 6.25 m²
• Water flow: 72 l/min
• Operating pressure: 8 bar
• Operating temperature: 90 °C, when using a special seal 200 °C
• Material: AISI 304 DIN 1.4404 EN 10888/2
