Accumulation tank MG2 300l d550

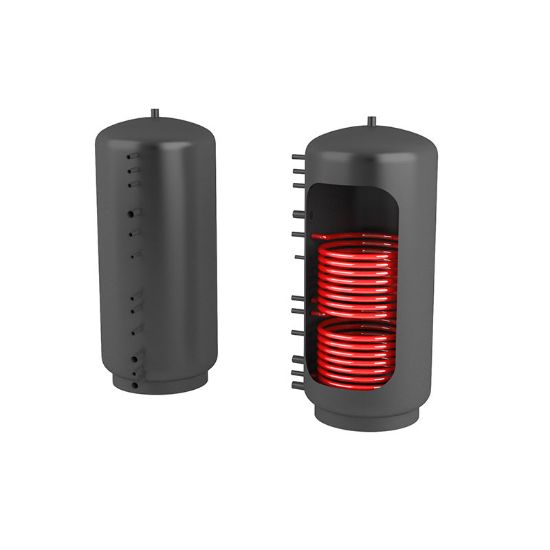

The MG2 storage tank contains 2 heating exchangers, which expand the range of useful properties of the storage tanks.
Delivery date: 3-5 weeks
We start production as soon as you place the order.
- *
- *
- *
17 489,00 Kč incl tax
14 453,72 Kč excl tax
The MG2 storage tank contains 2 heating exchangers, which expand the range of useful properties of the storage tanks. Heating water can be heated using solar collectors, heat pump and other sources.
- Volume: 300 l
- Height: 1450 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 550 mm
- Handling height: 1500 mm
- Weight with filling: 117 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Diameter with insulation: 750 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G 5/4" |
| 2 | Solar ( warm inside) | AG1" |
| 3 | Solar (return) | AG1" |
| 4 | Heat pump (return) | AG1" |
| 5 | Heat pump (warm inside) | AG1" |
| 6 | Output | G1 1/2" |
| 7 | Output | G1 1/2" |
| 8 | Boiler (return) | G1" |
| 9 | Radiator (return) | G1" |
| 10 | Electric spiral | G 6/4" |
| 11 | Output | G1" |
| 12 | Boiler (warm inside) | G1" |
| 13 | Radiator (warm outside) | G 5/4" |
