Accumulation tank MG1 200l d400

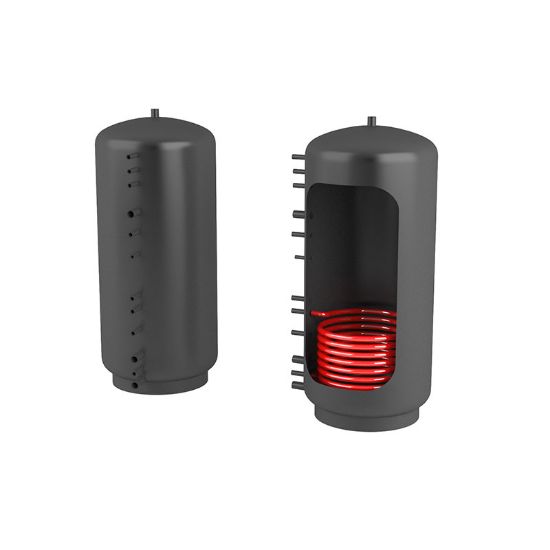

The MG1 storage tank contains a heating screw, which expands the range of useful properties of the storage tanks.
Delivery date: 3-5 weeks
We start production as soon as you place the order.
- *
- *
- *
10 230,00 Kč incl tax
8 454,55 Kč excl tax
The MG1 storage tank contains a heating screw, which expands the range of useful properties of the storage tanks. Heating water can be heated using solar panels. This vessel also allows connection to multiple heat sources, such as a heat pump.
- Volume: 200 l
- Height: 1689 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 400 mm
- Handling height: 1750 mm
- Weight with filling: 79 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Height with insulation: 2110 mm
- Diameter with insulation: 600 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G1 1/4" |
| 2 | Solar (return) | AG1" |
| 3 | Solar (warm inside) | AG1" |
| 4 | Thermometer | G1" |
| 5 | Output | G1" |
| 6 | Output | G 5/4" |
| 7 | Thermometer | G 5/4" |
| 8 | Boiler (return) | G1" |
| 9 | Radiator ( return) | G1" |
| 10 | Elektrical Spiral | G 6/4" |
| 11 | Output | G1" |
| 12 | Boiler (warm outside) | G1" |
| 13 | Radiator (warm inside | G 5/4" |
