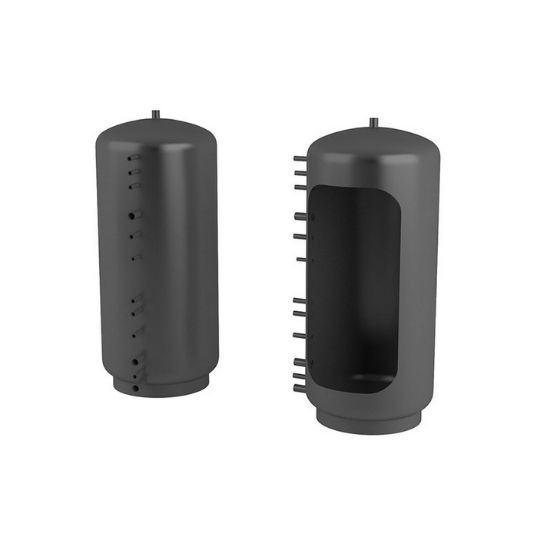

Accumulation tank MG0 1500l d900
The MG0 storage tank is a suitable solution for "storing" excess heat.
Delivery date: 3-5 weeks
We start production as soon as you place the order.
- *
- *
- *
30 000,00 Kč incl tax
Your price: 28 500,00 Kč incl tax
23 553,72 Kč excl tax
The MG0 storage tank is a suitable solution for "storing" excess heat. The storage tank ensures an even and more efficient use of the heat produced, thus reducing heating costs. This vessel allows connection to multiple heat sources, such as a heat pump.
- Volume: 1500 l
- Height: 2292 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 900 mm
- Handling height: 2310 mm
- Weight without filling: 204 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Diameter with insulation: 1100 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G 5/4" |
| 2 | Radiator (warm outside) | G1" |
| 3 | Output | G1" |
| 4 | Thermometer 4x | G1" |
| 5 | Boiler (warm inside) | G1" |
| 6 | Elektrical Spiral | G 5/4" |
| 7 | Output | G 5/4" |
| 8 | Output | G1" |
| 9 | Output | G1" |
| 10 | Elektrical Spiral | G 6/4" |
| 11 | Boiler (return) | G1" |
| 12 | Radiator ( warm return) | G1" |
| 13 | Output | G 5/4" |
