Accumulation tank KXT2 1000l d790

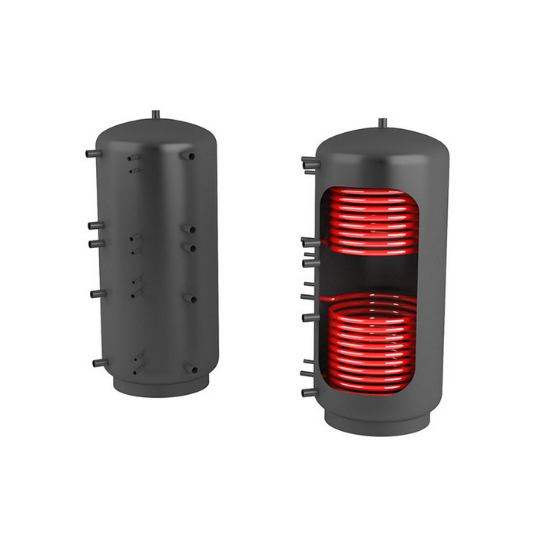

The KXT2 storage tank contains 2 heating exchangers, which expand the range of useful properties of the storage tanks.
Delivery date: 3-5 weeks
We start production as soon as you place the order.
- *
- *
- *
31 839,00 Kč incl tax
26 313,22 Kč excl tax
The KXT2 storage tank contains 2 heating exchangers, which expand the range of useful properties of the storage tanks. Heating water can be heated using solar collectors, heat pump and other sources.
- Volume: 1000 l
- Height: 2170 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 790 mm
- Handling height: 2195 mm
- Weight with filling: 220 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Diameter with insulation: 990 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G1" |
| 4 | Electric spiral | G1 1/2" |
| 5 | Boiler (warm inside) | G1 1/2" |
| 6 | Radiator (warm outside) | G1 1/2" |
| 7 | Output | G1 1/2" |
| 8 | Output | G1 1/2" |
| 9 | Output | G1 1/2" |
| 10 | Output | G1 1/2" |
| 11 | Boiler (return) | G1 1/2" |
| 12 | Radiator (return) | G1 1/2" |
| 13 | Thermometer 4x | G 1/2" |
