Accumulation tank 200l KXT1, d400

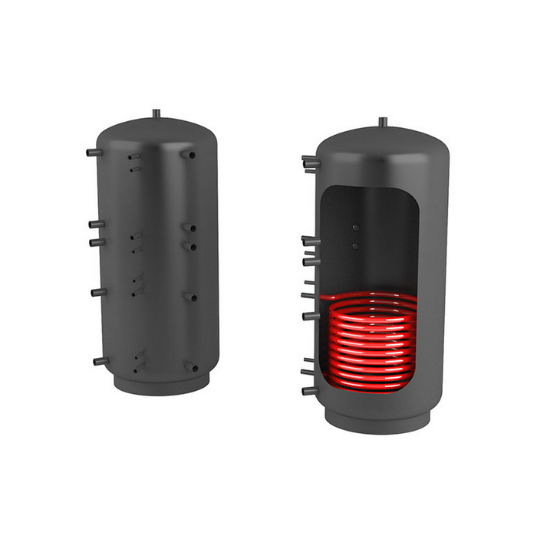

The KXT1 storage tank contains a heating auger, which expands the range of useful properties of the storage tanks.
Manufacturer: LU-MI servis
SKU: MG1022
Delivery date: 3-5 weeks
We start production as soon as you place the order.
    10 300,00 Kč incl tax
    8 512,40 Kč excl tax

    The KXT1 storage tank contains a heating auger, which expands the range of useful properties of the storage tanks. Heating water can be heated using solar collectors. This container also allows connection to multiple heat sources, such as fireplaces.

    • Volume: 200 l
    • Height: 1740 mm
    • Operating temperature / pressure: 0-95 ° C / 3 bar
    • Bottom height: 250 mm
    • Container diameter: 400 mm
    • Handling height: 1748 mm
    • Weight with filling: 79 kg
    • Casing material: S235 JRG2
    • Arched bottom material: S235 JRG2
    • Finish: Synthetic paint
    • Connecting thread: DIN ISO 228-1

    Optional accessories:

    • Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
    • Insulation width: 100 mm
    • Diameter with insulation: 600 mm

    Recommended connections:

    PositionFUNCTIONSleeve Type
    1Bleed valveG1"
    2aSolar (warm inside)G1" A
    3aSolar (return)G1" A
    4Electric spiralG1 1/2"
    5Boiler (warm inside)G1 1/2"
    6Radiator (warm outside)G1 1/2"
    7OutputG1 1/2"
    8OutputG1 1/2"
    9OutputG1 1/2"
    10OutputG1 1/2"
    11Boiler (return)G1 1/2"
    12Radiator (return)G1 1/2"
    13Thermometer 4xG 1/2"

    Products specifications
    Attribute nameAttribute value
    Tank capacity (l)200l
    Výška mm1740 mm
    DHW heatingNo
    Color

    Diameter (mm)400 mm
    Exchanger1pc
