Accumulation tank KXT1 1000l d790

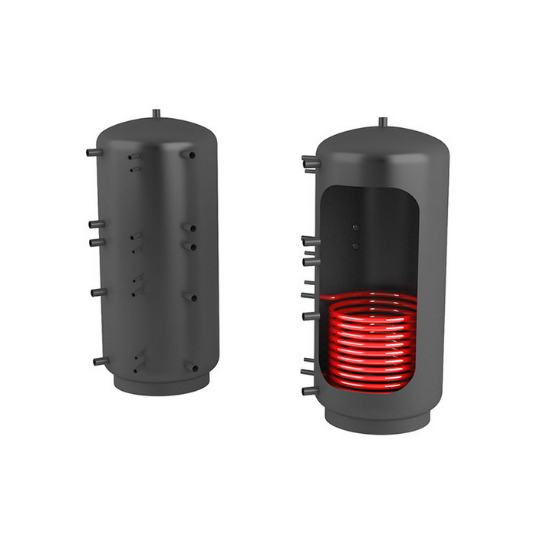

The KXT1 storage tank contains a heating auger, which expands the range of useful properties of the storage tanks.
- *
- *
- *
23 550,00 Kč incl tax
Your price: 21 195,00 Kč incl tax
17 516,53 Kč excl tax
The KXT1 storage tank contains a heating auger, which expands the range of useful properties of the storage tanks. Heating water can be heated using solar collectors. This container also allows connection to multiple heat sources, such as fireplaces.
- Volume: 1000 l
- Height: 2170 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 790 mm
- Handling height: 2195 mm
- Weight with filling: 180 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Diameter with insulation: 990 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G1" |
| 2a | Solar (warm inside) | G1" A |
| 3a | Solar (return) | G1" A |
| 4 | Electric spiral | G1 1/2" |
| 5 | Boiler (warm inside) | G1 1/2" |
| 6 | Radiator (warm outside) | G1 1/2" |
| 7 | Output | G1 1/2" |
| 8 | Output | G1 1/2" |
| 9 | Output | G1 1/2" |
| 10 | Output | G1 1/2" |
| 11 | Boiler (return) | G1 1/2" |
| 12 | Radiator (return) | G1 1/2" |
| 13 | Thermometer 4x | G 1/2" |
