Accumulation tank KXT1 1000l d850

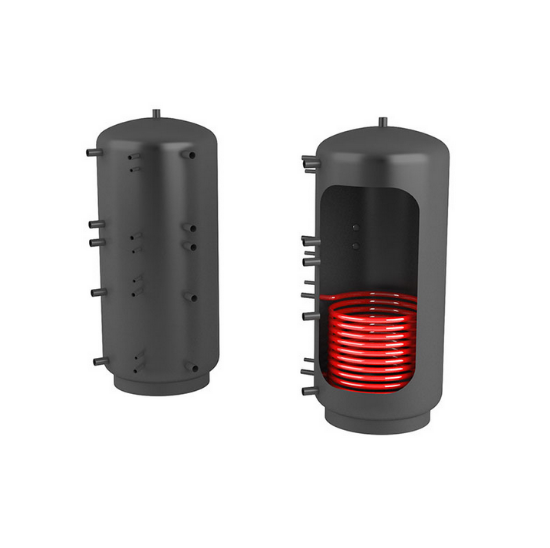

The KXT1 storage tank contains a heating auger, which expands the range of useful properties of the storage tanks.
Delivery date: 3-5 weeks
We start production as soon as you place the order.
- *
- *
- *
25 789,00 Kč incl tax
21 313,22 Kč excl tax
The KXT1 storage tank contains a heating auger, which expands the range of useful properties of the storage tanks. Heating water can be heated using solar collectors. This container also allows connection to multiple heat sources, such as fireplaces.
- Volume: 1000 l
- Height: 1980 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 850 mm
- Handling height: 2012 mm
- Weight with filling: 194 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Diameter with insulation: 1050 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G1" |
| 2a | Solar (warm inside) | G1" A |
| 3a | Solar (return) | G1" A |
| 4 | Electric spiral | G1 1/2" |
| 5 | Boiler (warm inside) | G1 1/2" |
| 6 | Radiator (warm outside) | G1 1/2" |
| 7 | Output | G1 1/2" |
| 8 | Output | G1 1/2" |
| 9 | Output | G1 1/2" |
| 10 | Output | G1 1/2" |
| 11 | Boiler (return) | G1 1/2" |
| 12 | Radiator (return) | G1 1/2" |
| 13 | Thermometer 4x | G 1/2" |
