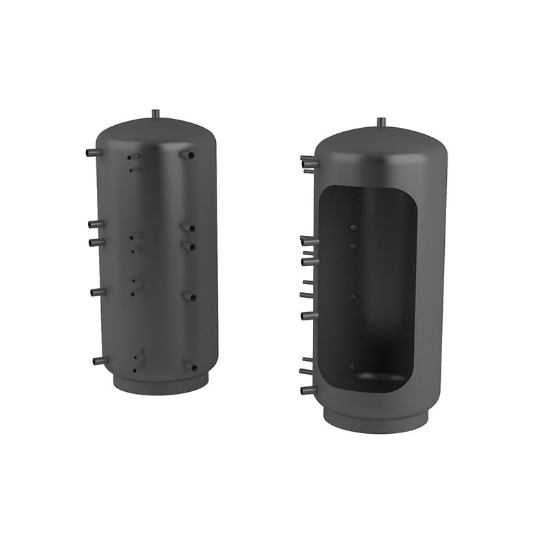

The KXT0 storage tank is a suitable solution for "storing" excess heat. The storage tank ensures an even and more efficient use of the heat produced, thus reducing heating costs. This container allows connection to multiple heat sources, such as fireplaces.
- Volume: 200 l
- Height: 1740 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 400 mm
- Handling height: 1748 mm
- Weight without filling: 63 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Diameter with insulation: 600 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G1" |
| 4 | Electric spiral | G1 1/2" G6/4" |
| 5 | Boiler (warm inside) | G1 1/2" |
| 6 | Radiator (warm outside) | G1 1/2" |
| 7 | Output | G1 1/2"-AG-AG1" |
| 8 | Output | G1 1/2"-AG-AG1" |
| 9 | Output | G1 1/2"-AG-AG1" |
| 10 | Output | G1 1/2"-AG-AG1" |
| 11 | Boiler (return) | G1 1/2" |
| 12 | Radiator (return) | G1 1/2" |
| 13 | Thermometer 4x | G 1/2" |
| 14 | Output to the pump | G 5/4" |
