Accumulation tank 5000l KXT1, d1600

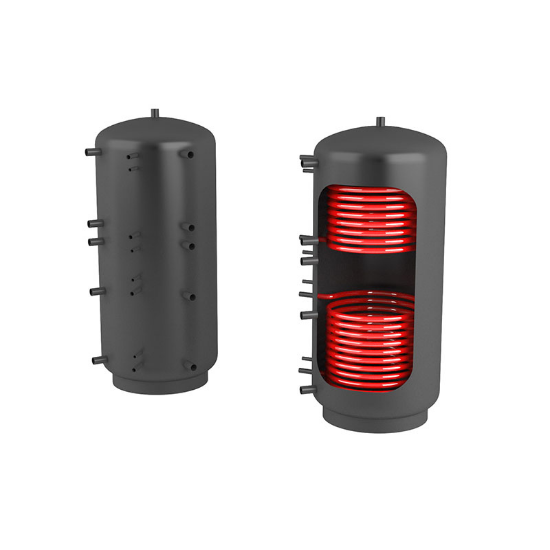

The KXT2 storage tank contains 2 heating exchangers, which expand the range of useful properties of the storage tanks.
- *
- *
- *
99 870,00 Kč incl tax
82 537,19 Kč excl tax
The KXT2 storage tank contains 2 heating exchangers, which expand the range of useful properties of the storage tanks. Heating water can be heated using solar collectors, heat pump and other sources.
- Volume: 5000 l
- Height: 2790 mm
- Operating temperature / pressure: 0-95 ° C / 3 bar
- Bottom height: 250 mm
- Container diameter: 1600 mm
- Handling height: 2906 mm
- Weight without filling: 772 kg
- Casing material: S235 JRG2
- Arched bottom material: S235 JRG2
- Finish: Synthetic paint
- Connecting thread: DIN ISO 228-1
Optional accessories:
- Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
- Insulation width: 100 mm
- Diameter with insulation: 1800 mm
Recommended connections:
| Position | FUNCTION | Sleeve Type
|
| 1 | Bleed valve | G1" |
| 4 | Electric spiral | G1 1/2" G6/4" |
| 5 | Boiler (warm inside) | G1 1/2" |
| 6 | Radiator (warm outside) | G1 1/2" |
| 7 | Output | G1 1/2"-AG-AG1" |
| 8 | Output | G1 1/2"-AG-AG1" |
| 9 | Output | G1 1/2"-AG-AG1" |
| 10 | Output | G1 1/2"-AG-AG1" |
| 11 | Boiler (return) | G1 1/2" |
| 12 | Radiator (return) | G1 1/2" |
| 13 | Thermometer 4x | G 1/2" |
| 14 | Output to the pump | G 5/4" |
