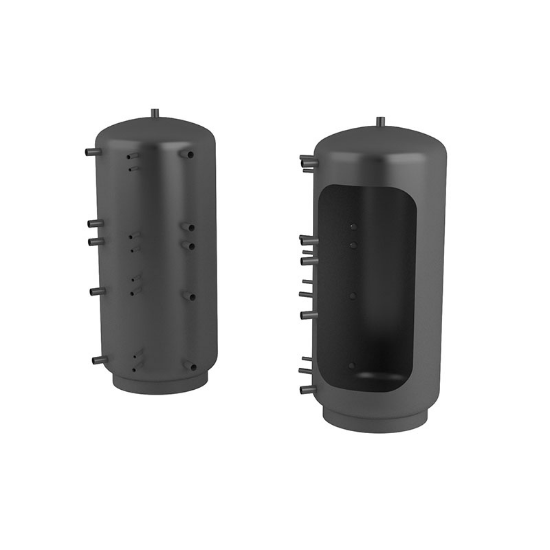

Accumulation tank 5000l KXT0, d1100

The KXT0 storage tank is a suitable solution for "storing" excess heat. The storage tank ensures an even and more efficient use of the heat produced, thus reducing heating costs. This container allows connection to multiple heat sources, such as fireplaces.

• Volume: 5000 l
• Height: 2790 mm
• Operating temperature / pressure: 0-95 ° C / 3 bar
• Bottom height: 250 mm
• Container diameter: 1600 mm
• Handling height: 2906 mm
• Weight without filling: 578 kg
• Casing material: S235 JRG2
• Arched bottom material: S235 JRG2
• Finish: Synthetic paint
• Connecting thread: DIN ISO 228-1

Optional accessories:

• Insulation made of high-quality felt insulation with a thickness of 100 mm (16 kg / m2) and a removable cover with a zipper.
• Insulation width: 100 mm
• Diameter with insulation: 1800 mm

Recommended connections:
